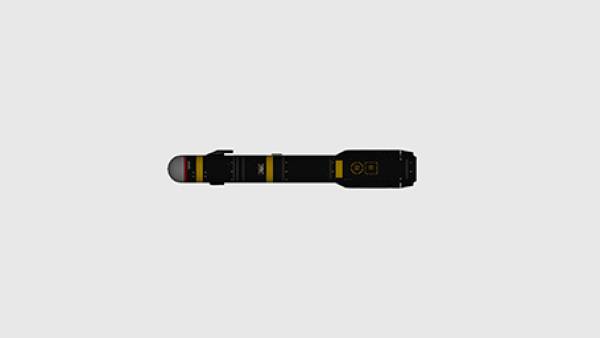

AGM-114L Hellfire LongBow

  • Produced: 1995 - 2005, 2016 - Present
  • Target: All armored targets
  • Range: 8,700 yd (8,000 m)
  • Guidance:
    • Fire and forget millimeter-wave (MMW) radar seeker coupled with inertial guidance
    • Homing capability in adverse weather and the presence of battlefield obscurants
    • Programmable fuzing and guidance
  • Warhead: 20 lb (9 kg) tandem shaped charge high-explosive anti-tank (HEAT) insensitive munitions (IM) warhead
  • Length: 71 in (180 cm)
  • Weight: 108 lb (49 kg)
  • L-7/8A Counter-UAS/counter-littoral variants with proximity fuze and blast-fragmentation sleeve


Quicklook: Guidence

PLEASE NOTE: This is just for Arma3. The game engine doesn't natively support all the Target and Guidence options in the real world so we have to compromise. This means twisting the various real-world options to fit

Fire and Forget NO locktype = 0 Fire and Forget
Beam Rider YES locktype = 1 Beam riding
Manual NO locktype = 2 Manual control like TV Guided or SACLOS
Laser NO LaserLock = 1 Laser Guidence and beam-riding
InfraRed NO irLock = 1 IR Guidence
Radar YES Defined in components Radar Guided/Homing
DataLink/GPS/INS YES Defined in components Tactical Data Link
Range Min 500 Calculated In-game relative range
Range Max 6000 Calculated In-game relative range

Class Names

WPN Class rksla3_wpn_agm114l Mass
Mag Class name rksla3_mag_agm114l_sglrail_x1 Hardpoint RKSLA3_AGM114L_SGL_X1 59.8
rksla3_mag_agm114l_sglrailuav_x1 RKSLA3_AGM114L_SGLUAV_X1 65.2
rksla3_mag_agm114l_m299_x4 RKSLA3_AGM114L_M299QUAD_X4 265.8
rksla3_mag_agm114l_m310_x2 RKSLA3_AGM114L_M310DUAL_X2 143.6
Ammo Class rksla3_ammo_agm114l 60
submunitionAmmo ammo_Penetrator_Scalpel N/A

Config Settings

Inherits from M_Scalpel_AT
locktype 0
weaponlocksystem 0 + 8
cost 300
deleteParentWhenTriggered 0
Hit 150
IndirectHit 50
Indirect Range 11.1
dangerRadiusHit 37
suppressionRadiusHit 3
warheadName TandemHEAT
Camera View Available 1
airlock 0
irLock 0
nvLock 0
laserLock 0
ManualControl 0
missileLockCone 30.00
missileKeepLockedCone 60.00
missileLockMaxDistance 6000
missileLockMinDistance 250
missileLockMaxSpeed 55
lockSeekDistanceFromParent N/A
cmImmunity 0.45
flightProfiles Direct + Topdown
aiAmmoUsageFlags 128 + 512
InitTime 0
thrust 168
thrusttime 3.5
AirFriction 0.103
Side Air Friction 0.18
maxSpeed 450
typicalSpeed 305
Maneuverability 15
SimulationStep 0.002
fuseDistance 500
TimetoLive 28
tracklead 1
trackOversteer 1.5
craterEffects ATRocketCrater
effectsMissile missile3
explosionEffects ATRocketExplosion
effectsMissileInit
muzzleEffect BIS_fnc_effectFiredHeliRocket
soundFly A3\Sounds_F\weapons\Rockets\rocket_fly_1“,0.56234133,1.5,700
whistleDist 8
CALCULATED SETTINGS
Range Ratio 1.0000
Calculated Max Range 6000
Component - AirTarget MinRange Arma 500
Component - AirTarget - MaxRange Arma 6000
Component - GroundTarget MinRange Arma 500
Component - GroundTarget - MaxRange Arma 6000
angleRangeHorizontal 90
angleRangeVertical 70
