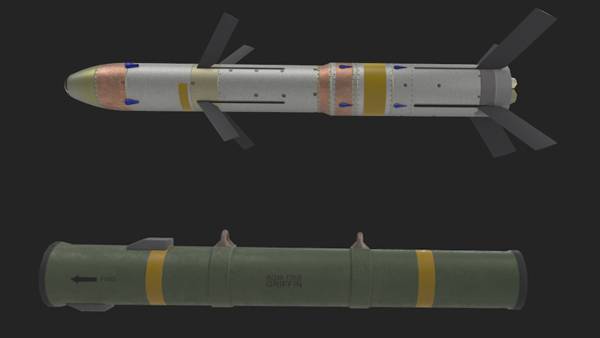

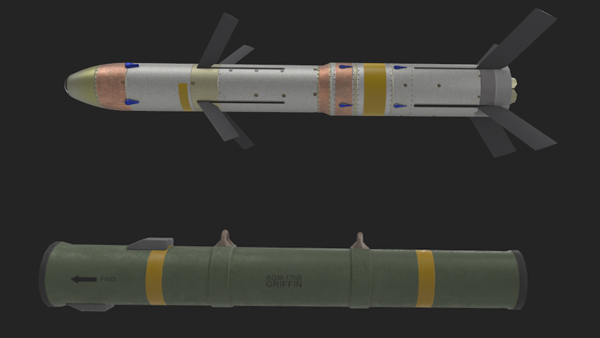

AGM-176 Griffin

The AGM-176 Griffin is a lightweight, precision-guided munition developed by Raytheon. It can be launched from the ground or air as a rocket-powered missile or dropped from the air as a guided bomb. It carries a relatively small warhead, and was designed to be a precision low-collateral damage weapon for irregular warfare. It has been used in combat by the United States military during the War in Afghanistan.
Raytheon and Lockheed Martin Missiles and Fire Control developed the Griffin as a low-cost modular system, using components from earlier projects, including the FGM-148 Javelin and the AIM-9X Sidewinder.

It was originally designed to be launched from the US Special Operations Command's MC-130W Dragon Spear gunship and can be guided either by a semi-active laser seeker or with GPS. Its precision combined with a relatively small 13 lb (5.9 kg) warhead reduces collateral damage.

Griffin Block II B is a short-range, rocket-powered air-to-surface or surface-to-surface missile that can be fired from UAVs as well as helicopters, attack aircraft, U.S. Air Force AC-130W gunships, and Marine Corps KC-130J tankers.

Quicklook: Guidence

PLEASE NOTE: This is just for Arma3. The game engine doesn't natively support all the Target and Guidence options in the real world so we have to compromise. This means twisting the various real-world options to fit

Fire and Forget NO locktype = 0 Fire and Forget
Beam Rider YES locktype = 1 Beam riding
Manual NO locktype = 2 Manual control like TV Guided or SACLOS
Laser NO LaserLock = 1 Laser Guidence and beam-riding
InfraRed NO irLock = 1 IR Guidence
Radar YES Defined in components Radar Guided/Homing
DataLink/GPS/INS YES Defined in components Tactical Data Link
Range Min 300 Calculated In-game relative range
Range Max 15000 Calculated In-game relative range

Class Names

WPN Class rksla3_wpn_griffinb Mass
Mag Class name rksla3_mag_griffinb_tube_x1 Hardpoint RKSLA3_AGM176_TUBE_X1 24
rksla3_mag_griffinb_dualrack_x2 RKSLA3_AGM176_DUALRACK_X2 68
Ammo Class rksla3_ammo_griffinb 16
submunitionAmmo rksla3_ammo_Penetrator_griffinb N/A
