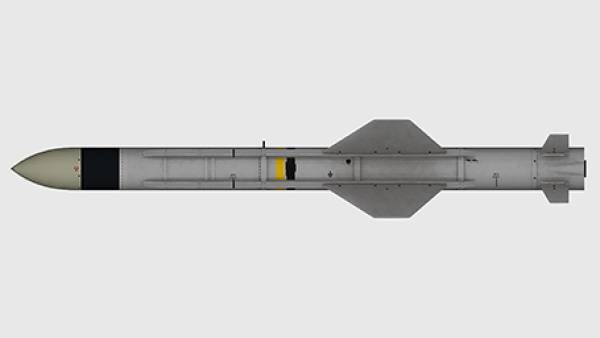

AM.39 Exocet

The AM39 (air-launched) – B2 Mod 2: deployed on 14 types of aircraft (combat jets, maritime patrol aircraft, helicopters). Range between 50 and 70 km, depending on the altitude and the speed of the launch aircraft.

The Exocet is built by MBDA, a European missile company. Development began in 1967 by Nord as a ship-launched weapon named the MM38. A few years later, Aerospatiale and Nord merged. The basic body design was based on the Nord AS-30 air-to-ground tactical missile. The sea-launched MM38 entered service in 1975, whilst the air-launched AM39 Exocet began development in 1974 and entered service with the French Navy five years later in 1979.

The relatively compact sea skimming missile is designed for attacking small- to medium-size warships (e.g., frigates, corvettes, and destroyers), although multiple hits are effective against larger vessels, such as aircraft carriers. It is guided inertially in mid-flight and turns on active radar homing late in its flight to find and hit its target. As a countermeasure against air defence around the target, it maintains a very low altitude while inbound, staying just one to two meters above the sea surface. Due to the effect of the radar horizon, this means that the target may not detect an incoming attack until the missile is only 6,000 metres (3.7 mi) from impact.

Its solid propellant rocket motor gives the Exocet a maximum range of 70 kilometres (43 mi; 38 nmi). It was replaced on the Block 3 MM40 ship-launched version of the missile with a solid-propellant booster and a turbojet sustainer engine which extends the range of the missile to more than 180 kilometres (110 mi; 97 nmi). The submarine-launched version places the missile inside a launch capsule.

Ingame Stats

Classnames

WPN Class rksla3_wpn_am39
Mag Class name rksla3_mag_am39_direct
Ammo Class rksla3_ammo_am39
HARDPOINT RKSLA3_AM39_DIRECT
submunitionAmmo ammo_Penetrator_AGM_02
All up mass 780.00
