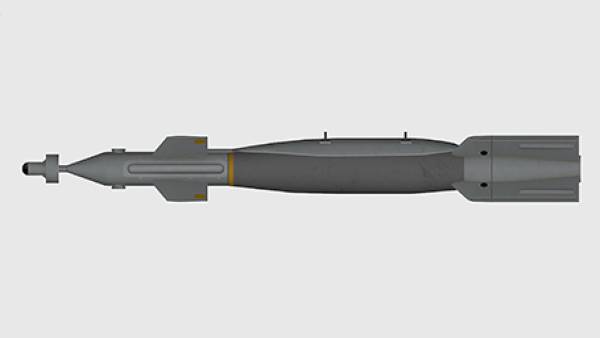

Paveway IV 500lb LGB

Paveway IV is a dual mode GPS/INS and laser-guided bomb manufactured by Raytheon UK (formerly Raytheon Systems Limited). It is the latest iteration of the Paveway series.

The weapon is a guidance kit based on the existing Enhanced Paveway II Enhanced Computer Control Group (ECCG) added to a modified Mk 82 general-purpose bomb with increased penetration performance. The new ECCG contains a Height of Burst (HOB) sensor enabling air burst fusing options, and a SAASM (Selective Availability Anti Spoofing Module) compliant GPS receiver. It can be launched either IMU (Inertial Measurement Unit) only, given sufficiently good Transfer Alignment, or using GPS guidance. Terminal laser guidance is available in either navigation mode.

The Paveway IV was first used operationally by the Royal Navy during Operation Herrick in Afghanistan. It was later used operationally during Operation Ellamy in Libya, and Operation Shader in Iraq and Syria. In December 2015, the Royal Air Force began strike operations in Syria as part of Operation Shader, and deployed Paveway IV operationally from its Eurofighter Typhoons for the first time.

In January 2015, Eurofighter Typhoons of the Royal Saudi Air Force dropped Paveway IVs on ISIL targets in Syria. This was the first operational deployment of Paveway IV from Typhoon.

Paveway IVs were also used in the Saudi Arabian-led intervention in Yemen. In 2015 for a period export licences were withheld over concern about how they might be used in Yemen, but after some assurances were made exports were resumed. The sales were investigated by the Committees on Arms Export Controls. In December 2016, the Obama administration blocked a transfer of Paveway IV bombs to Saudi Arabia because of concerns about civilian casualties which officials put down to poor targeting.

Raytheon UK is conducting preparatory work to equip the Paveway IV with a bunker-busting warhead as part of the Selective Precision Effects At Range (Spear) Capability 1 program. The compact penetrator has the same outer mold line and mass of the regular Paveway IV and uses a discarding shroud design. A penetrating 500 lb (230 kg) Paveway IV would replace the RAF's previous 2,000 lb (910 kg) Paveway III bunker buster. The penetrating version of the Paveway IV will enter service on the Typhoon in early 2019. Raytheon claims the new warhead has the performance of the BLU-109 penetrating bomb, despite being one-quarter of its weight.

Classnames

WPN Class rksla3_wpn_uk_pw4_500 Mass
Mag Class name rksla3_mag_uk_pw4_500_bru57_x2 Hardpoint RKSLA3_PW500_BRU57 499.5
rksla3_mag_uk_pw4_500_directx1 RKSLA3_PW500_DIRECT 235
Ammo Class rksla3_ammo_uk_pw4_500 235
submunitionAmmo NONE N/A
