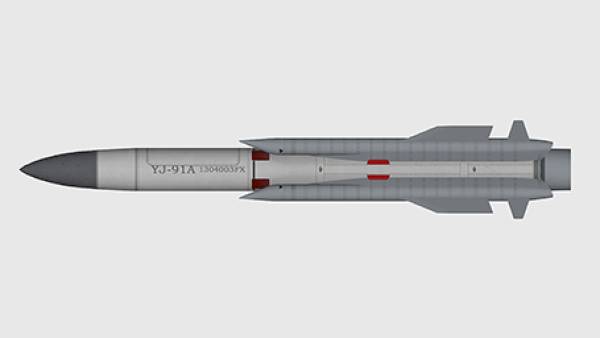

YJ-91A AShM

The YJ-91A is a Chinese made varient of the Kh-31A (Russian: Х-31; AS-17 'Krypton')

In many respects the Kh-31 is a miniaturised version of the P-270 Moskit (SS-N-22 'Sunburn') and was reportedly designed by the same man. The missile is conventionally shaped, with cruciform wings and control surfaces made from titanium. The two-stage propulsion is notable. On launch, a solid-fuel booster in the tail accelerates the missile to Mach 1.8 and the motor is discarded. Then four air intakes open up and, as in the Franco-German ANS/ANF, the empty rocket case becomes the combustion chamber of a kerosene-fuelled ramjet, which takes it beyond Mach 4.

The L-111E seeker of the anti-radar version has a unique antenna, an interferometer array of seven spiral antennas on a steerable platform. The seekers delivered to China in 2001-2 were 106.5 cm (41.9 in) long, 36 cm (14 in) in diameter, and weighed 23 kg (51 lb)

Real World Info

Ingame Stats

Classnames

WPN Class rksla3_wpn_yj91a
Mag Class name rksla3_mag_yj91a_direct
Ammo Class rksla3_ammo_yj91a
HARDPOINT RKSLA3_YJ91A_DIRECT
submunitionAmmo ammo_Penetrator_AGM_02
All up mass 600.00
